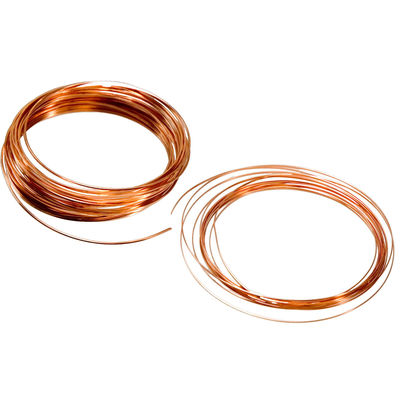

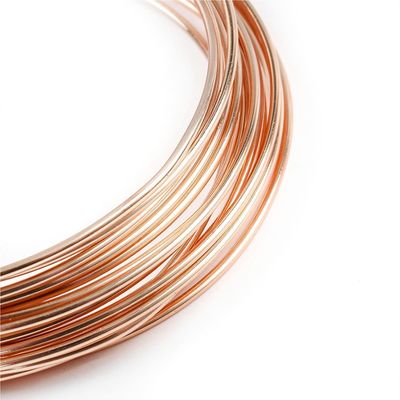

Industrial ASTM C1100 Pure Thin Copper Wire Annealed Bare Copper For Mig Welding
Place of Origin | china |
---|---|
Brand Name | ShengQuan |
Certification | ISO9001:2000 |
Model Number | C10200 C10300 C11000 C12000 T1 T3 |
Document | Product Brochure PDF |
Minimum Order Quantity | 1ton |
Price | USD1500-USD6000 |
Packaging Details | Standard Export Sea-Worthy Packing |
Delivery Time | 5-15days |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 15000Tons |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xShape | Plate,Coil,Flat Sheet,Sheet/Plate/wire | Width | 3.0mm-1200mm,0.5--200mm,Customized |
---|---|---|---|
Thickness | 0.1mm~200mm,0.2mm-3.0mm | Conductor Type | Stranded Or Solid,enamelled Copper Wire |
Conductor Material | Copper,Copper Clad Aluminum,Annealed Copper Wire,CU/CCA/CCAM | Application | Heating,motor,Transformer,Rectifier And Such Coil,Ultra Fine Rectangular Enameled Wire For Transfomer |
Type | Insulated,Bare,Other | Color | Optional,Red,Copper,Requirement |
Standard | JIS,IEC,GB,NEMA | ||
Highlight | C1100 thin copper wire,ASTM thin copper wire,C1100 annealed bare copper |
ASTM C1100 Pure Annealed Bare Copper Wire Industrial 0.5mm 0.8mm Bare Thin Insulated Copper Wire For Mig Welding
Copper Is Available in Different Grades
Copper scrap comes in four different grades. Copper wire and cable represents the highest grade and is bare, uncoated, and unalloyed. For structural branch circuit wiring. According to Copper.org, the amount of size 12 wire consumed annually in the USA is enough for 120 round trips to the moon.
Copper Must Be Extremely Pure
To be used in electrical applications, copper needs to be refined to at least 99.98% purity.
Copper Is Used Often in Wind Farms
Insulated copper cables deliver electricity generated from wind to a copper-wound transformer. Wind turbine towers are connected by underground copper cables that collect electricity and transfer it to a substation. In fact, some wind farms have over 300,000 feet of copper wire installed.
Typical Physical Properties of Alloy 25(UNS.C17200) Copper Beryllium Alloy:
Density (g/cm3): | 8.36 |
Density before age hardening (g/cm3): | 8.25 |
Elastic Modulus (kg/mm2 (103)): | 13.4 |
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): | 17 x 10-6 |
Thermal Conductivity (cal/(cm-s-°C)): | 0.25 |
Melting Range (°C): | 870-980 |
Mechanical and Electrical Properties of Alloy 25(UNS.C17200) Copper Beryllium Round Wires:
Alloy | Temper (*) | Heat Treatment | Tensile Strength Mpa | Elongation percent | Electrical Conductivity percent IACS |
CUBERYLLIUM 172 |
A | / | 400~580 | 30-60 | 15-19 |
(TB00) | |||||
1/4 H | / | 570~795 | 3~25 | 15-19 | |
(TD01) | |||||
1/2 H | / | 710~930 | 2~15 | 15-19 | |
(TD02) | |||||
3/4 H | / | 840~1070 | 2~8 | 15-19 | |
(TD03) | |||||
H | / | 915~1140 | 1~6 | 15-19 | |
(TD04) | |||||
CUBERYLLIUM 172 |
AT | 3 hr 315℃ | 1050~1380 | 3 min | 22-28 |
(TF00) | |||||
1/4 HT | 2 hr 315℃ | 1150~1450 | 2 min | 22-28 | |
(TH01) | |||||
1/2 HT | 1.5hr 315℃ | 1200~1480 | 2 min | 22-28 | |
(TH02) | |||||
3/4 HT | 1.0 hr 315℃ | 1250~1585 | 2 min | 22-28 | |
(TH03) | |||||
HT | 1.0hr 315℃ | 1300~1585 | 1 min | 22-28 | |
(TH04) |
